BB-ESW105-A帶有低VAC電源輸入的5端口薄型非網管工業以太網交換機
產品編號：2025917224945
產品價格：￥
產品描述：BB-ESW105-A帶有低VAC電源輸入的5端口薄型非網管工業以太網交換機
|
|
|
產品介紹
BB-ESW105-A帶有低VAC電源輸入的5端口薄型非網管工業以太網交換機
- 5個帶自動MDI/MDI-x的快速以太網端口
- 支持10/100 Mbps自動協商
- 尺寸緊湊，帶DIN導軌和壁掛式安裝
- IP40級金屬外殼
- C1D2用于危險場所
- BB-ESW105-A
- Certification
- EMI
- CE, FCC Class A
- EMS
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- Safety
- EN 60950, UL60950, Class 1 Division 2
- Environment
- Temperature (Min. Operating)
- -40°C (-40°F)
- Temperature (Max. Operating)
- 75°C (167°F)
- Operating Temperature
- -40 ~ 75°C (-40 ~ 167°F)
- Storage Temperature
- -40 ~ 85°C (-40 ~ 185°F)
- Ethernet Communication
- Fiber Port Number
- -
- Fiber Port Interface
- -
- Fiber Port Connector Type
- -
- Fiber Transmission Distance
- -
- Fiber Transmission Speed
- -
- RJ-45 Port Number
- 5
- RJ-45 Port Connector Type
- RJ-45
- RJ-45 Transmission Distance
- 100 m
- RJ-45 Transmission Speed
- 10/100 Mbps
- Mechanism
- Mounting (DIN-rail)
- Yes
- Mounting (Stack)
- -
- Mounting (Panel)
- -
- Mounting (Wall)
- Yes
- Mounting (Rack Mount)
- -
- Mounting (Pole Mount)
- -

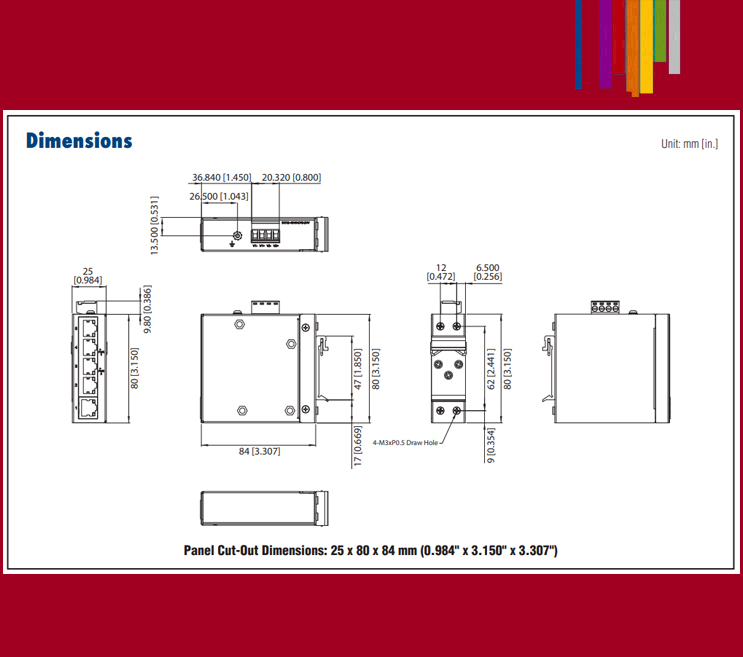

- Dimensions (W x H x D)
- 25 x 80 x 84 mm (0.98 x 3.15 x 3.31 in.)
- Enclosure (Plastic)
- -
- IP Rating
- IP30
- Weight
- -
- PoE Information
- PoE Port Number
- -
- PoE Budget
- -
- PoE Output
- -
- Support PoE
- No
- Power
- Power Connector Type
- 4-pin removable terminal (power)
- Power Consumption
- 4.1W
- Power Input (AC)
- 10~24 VAC
- Power Input (DC)
- 12 ~ 48 VDC
- Power Input (PoE)
- -
- Power Input (Battery)
- -
- Switch Properties
- Jumbo Frame
- -
- MAC Table Size
- -
- Packet Buffer Size
- -
- Switch Fabric Speed
- -
- Warranty
- Warranty Period
- 5 years
- Protection
- Overload Current
- Present
- Reverse Polarity
- Present
|
